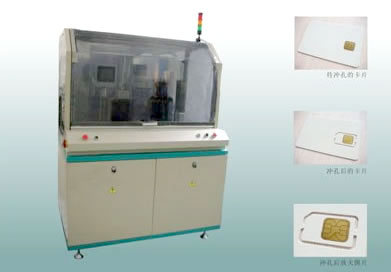

Full Auto SIMCard Punching Machine

Function :It is used to punch SIM card with conformity to ISO standards. It is suitable for 2 in 1 card.

Features

• Controlled by Servo motor, low noise and stable.
• Double cards detection function
• Module detection function makes sure the correct card direction when transfer.
• Special location design can punch different cards with special shapes.
• Sensors added on the card centering system makes sure a good accuracy of cutting and punching position.
• Two different out feeding designs; cards can be collected automatically.
• Cards transferred through belt driven by servomotor ensure the safety and stability of the machine.
• Personalized software design. Machine can be empty automatically and sample cards freely
• Special feeding design avoids unloading double cards caused by static electricity.

Tech. Specification

Dimension: H1600�~W820�~L2140mm

Weight: about 1200 kgs

Electric: AC220V 50/60HZ

Power: 4 KW

Compress Air: 6 kgs /cm²

Air consumption: 120L/min

Control Method: Servo system + PLC control

Servo Precision: X,Y=0.0125mm

Tolerance: 0.01mm

Operator: 1 person

Output: 3000--4000 pcs/h (Small Card),4000--4500 pcs/h (Standard Card)
