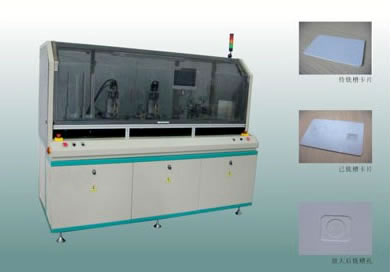

Full Auto High Speed Milling Machine
 Function: This machine is used for milling cavity matching to different chips on standard cards��and also apply to the dual interface card slots and tin sheet milling .
Features:
Integrating milling with clean system and depth detection functions.
Specialized fixture design for card centering system, protecting the milling depth from the influences of the card thickness and dimension.
Including four standard module milling programs fitting to different requirements with parameters modification conveniently.
X and Y the two separated milling stations can mill different profiles at the same time, or individually. It settles the difficult problem of adjusting the center place on two stations while milling.
Z-Axis moving is realized through guide and ball screw driven by high precision servomotor, to provide the accurate milling depth. Special tool changing program make tool changing is fast and convenient.
Personalized software design. Easy operation.
Cards are transferred through belt driven by servomotor, which is more safety and stability.
Depth detection device ensures the eligible rate during milling by rejecting faulty cards.
Special feeding design avoids unloading double cards caused by static electricity.
Tech. Specification
Dimension: H1600*W820*L1800�L
Weight: About 1000 kgs
Electric: AC380V three phases 50/60Hz
Power: 3 KW
Compress Air: 6 kgs /cm2
Air consumption: 100L/min
Control Method: Servo system + PLC control
Servo Precision: X,Y=0.0125mm
Tolerance: 0.01mm
Operator:1 person
Output: 4000--4500 pcs/h
|
