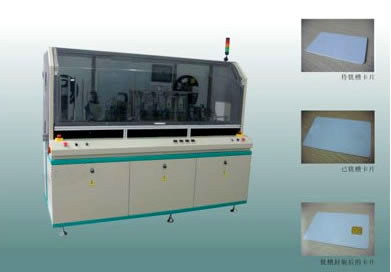

High Speed Full Automatic IC Slot Milling, Implanting and Testing machine (3-in-1)

Function: This is a full auto machine,integrated slot milling, implanting  and testing,able to independently realize the fully-automatic slot milling/implanting/testing function .

Features:

• Professional clamp design to make the work of slot milling/implanting not subject to the size and thickness of card, the position and size of slot milling could be adjusted freely in the range.
• Built-in four different module procedures could be selected freely via the interface.
• Adopt the imported dust absorber with good effect, automatically clean after milling to ensure the quality of packaging.
• Module grouping conveying to ensure to pack with good module, automatic testing function is available to ensure the damaged modules shall not be packaged.
• Cold welding function could quickly cool and form the module, hot-melt adhesive and card.
• Automatic monitoring function is available; the error shall be displayed on user-friendly interface, easy and convenient to operate with the high definition color touch screen.
• The testing of depth after milling and the height of module and card base after packaging could be selected according to the requirements.

Tech. Specification

• Dimension: H1700*W900*L3300mm
• Weight:1100Kg Approx
• Power: AC380V three phase 50/60HZ
• Compress Air:6 kg /cm2
• Control Method:Two axis located + PLC control
• Servo Precision:X,Y=0.0125mm
• Tolerance: 0.01mm
• Operator:1 person
• Output:3500 pcs/h
