function:

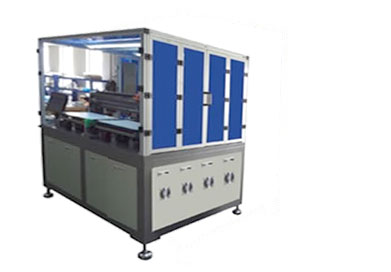

The machine is designed for the production of inlay sheet. Tin sheet is punched and picked & placed into the holes in PVC sheet. Wires are embedded in PVC sheet, which cross over the tin sheets. Tin sheets are welded with wires.

Features:

Industrial PC and servo system control.

Double worktables driven by servo motor. Loading tables move cyclically among pick & place, wire embedding and welding stations to ensure the replacement of the PVC sheets without stop which improves the production efficiency.

16 IC module suctions designed for picking & placing 16 pieces of tin sheets simultaneously. 4 embedding heads and single welding head designed.
Pick & place/embedding/X axis of welding and Y axis of worktable are driven by MITSUBISHI servo motor to ensure dynamic drive accuracy.
Pick & place worktables are vacuum tables, equipped with imported vacuum pump. The PVC sheet and picked & placed tin sheets are fixed on worktables by vacuum adsorption.

Specifications:

Work station: Y axis of Loading worktable (2 pieces)/Punch tool unit for tin sheet/Tin sheet transfer unit (run in axis X, Y direction)/ Pick & Place suction unit for Tin sheet / X axis of embedding/ embedding head unit/X axis of welding/welding heads unit.

Work table: 2 pieces;  Layout: 3��8

Throughput: 1500 pcs/h

Accuracy: ��0.02mm

Yield: 97%

Power: AC220V, 50/60Hz, 2KW

Application material: PVC, ABS, PETG, ABS sheets with punched holes

PVC thickness: 0.1mm~0.35mm

Weight: 1300Kg

Dimension: (L) 1355mm x (W) 1600mm x (H) 1457mm

Operation requirement:

1. Environment: constant temperature 22��, ��3��, dry and dust free.
2. Power: AC 220V (single phase), 50/60HZ
3. Air pressure: 6kg/cm2    clean, dry and oil-free.

Notes: above specification is subject to change without prior notice due to continuous improvement.
