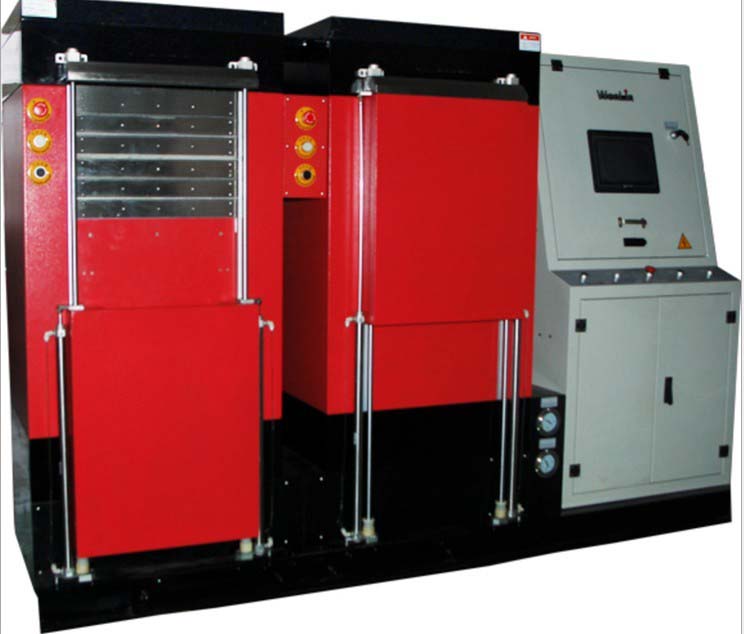

Automatic Hot and Cold Laminating Integrated Machine

Function

The machine is a equipment of high precision and high output which is made up of PLC control system and mechanical hydraulic system, with hot and cold system.It is available for the laminating of all kinds of card making sheet material (especially for the non-contract IC card,ID card including INLAY).

Feature

• Laminating methods:using single cylinder jacks up so as to maintain balance automatically,controlled with double pumps cooperating with import pressure module by frequency conversion��multilevel pressure,with equality and invariableness pressure and high precision.
• Heating methods:use heater to heat up and the temperature can be controlled in many sections,the parameter of every section can be set.
• Temperature control method:the PLC work with the temperature control module to realize the invariableness control for the temperature basis the parameter set in every section.
• Cooling method:cooled by frost water cycle disposed by chiller(the frequency of the stream amount can be controlled),saving energy and with good effect.
• Touch screen human-machine interface is used, which ensures operation to be convenient.

Tech. Specification

• Dimension:H1750*W880*L1400mm
• Control method:PLC program+ Pressure module+ Temperature module
• Weight:about 1200 kgs
• Electric:AC380V /50HZ
• Total Power:30KW
• Output:280--400PCS/hour
• Working layers:4 layers(cold and hot is convertible)
• Pressure levels:1-4 level(can be set)
• Pressure range:0-18MPA
• Pressure Precision:��0.1MPA
• Temperature control range:0-400(can be set)
• Maximum laminating size:520x425 mm
• Temperature control precision:��3��
