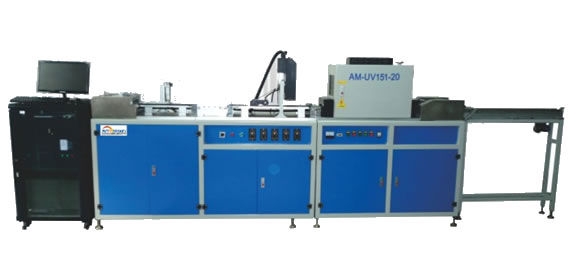

DOD Barcode Inkjet pringting machine
Function
The machine is suitable to print the card barcode, transfer customer's data to barcode format to print.(Can print barcode, Chinese, English and Picture)
Feature
-
Adopt imported printing head, with long life time and stable function, suitable to use under the industry production
-
High printing quality, the edge of the line and word is clean, and the color is equality
-
The max printing width of each single printing head is 36mm
-
The system is Windows7, easy to maintance and operating
-
The resolution of the printing can be adjusted by the customer, up to max 7200DPI, the speed can reach to 20M/min
-
The system can take the common barcode format and drug regulation system
Tech. Specification
-
Outline dimension:L1600*W700*H1900mm
-
Weight:600KG
-
Power supply:AC380V 50/60HZ
-
Compressed Air:5-6KG/cm2,70L/H
-
Total power: 5kw
-
Speed: 9000 pcs/h
-
Operation Way: Industry PC
-
Operation :1 Person
|
